05Overview
Ready to work from the moment it arrives.
Compact in size but built for serious performance, the 5 Series is the smallest mobile site van in our fleet at 3.5 tonne rated.
Whether you're managing a short-term project or a remote operation, everything you need is already onboard—including a kitchenette, single toilet, reverse-cycle air conditioning, and ample workspace.
With no trade setup required, the mobile site van can be operational within minutes of delivery, helping you minimise downtime and keep your project moving.
Download spec sheet ↓Everything onboard
Standard features
- 150L diesel tank
- 500L potable water tank
- 500L waste tank
- 10 ft awning
- 12 volt solar system designed to run 85% of the van
- Enclosed 9 kVA mine-compliant generator
- Reverse-cycle air conditioning

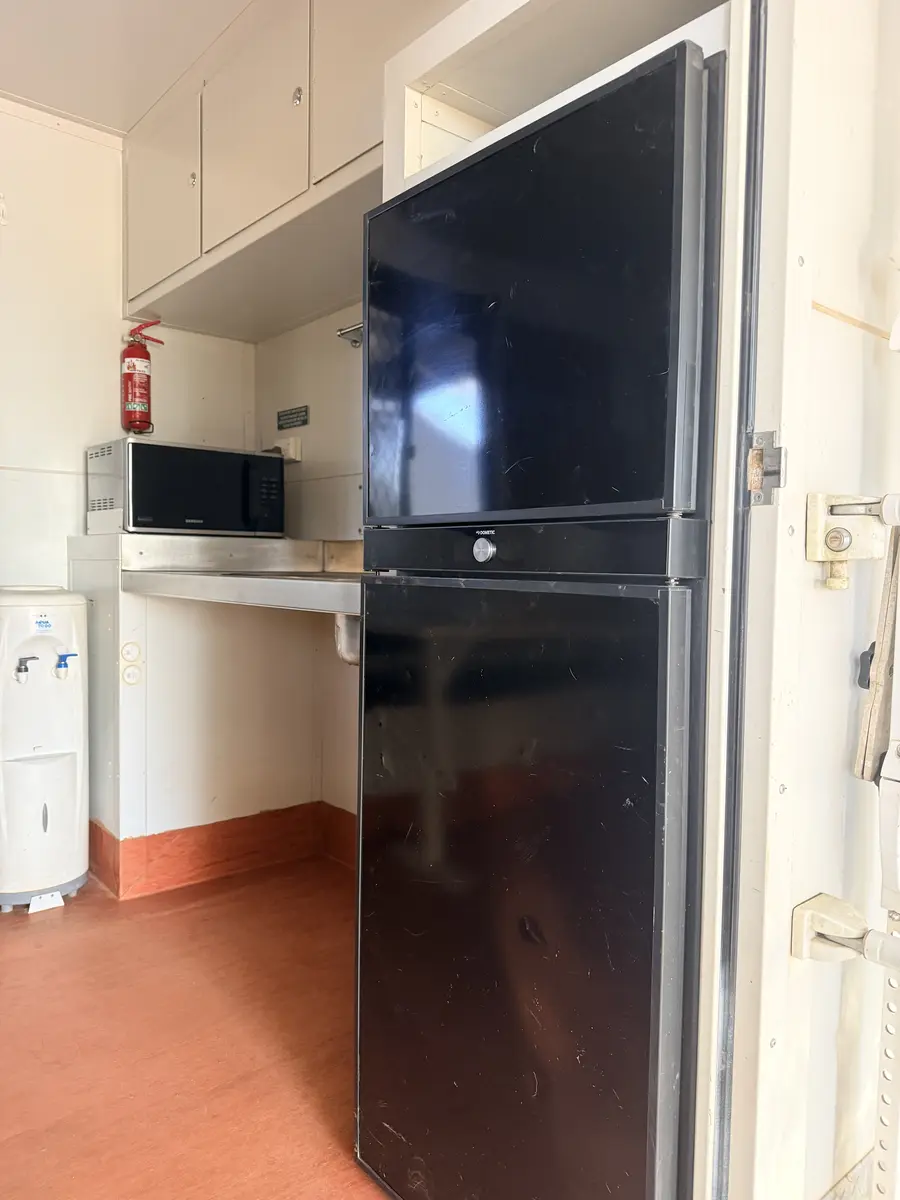

- Full kitchenette
- Single toilet

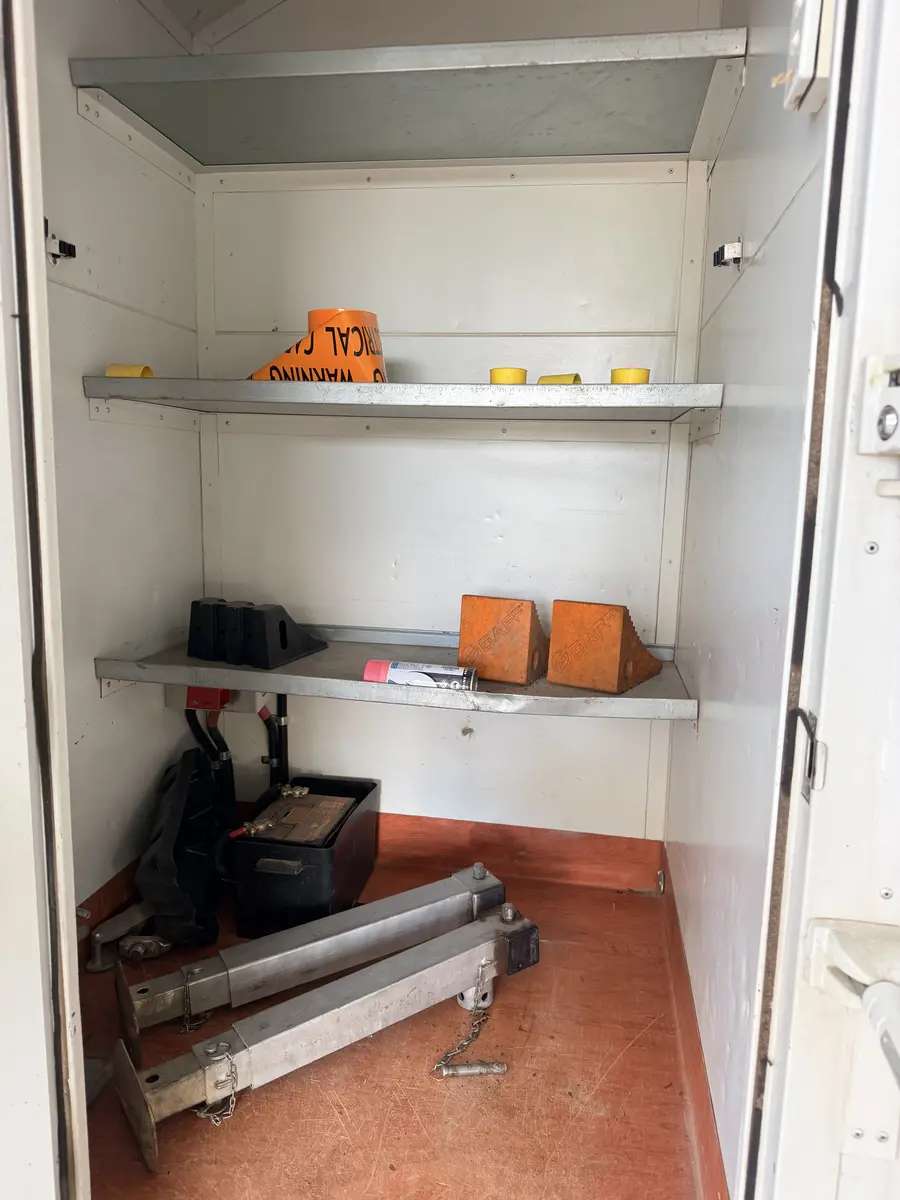

- Overhead storage
- Whiteboard and corkboard
Built with care
Safety features
- Smoke alarm, fire blanket and fire extinguishers
- Venta in-cab brake controller
- Heavy-duty front drop leg
- Stabilising legs
- Wheel nut indicators
- Spare wheels
- Security windows with blinds
- Fold-out steps
- Pop-out safety handrails
- 12 volt external lighting
Van details
Specifications
Plan transport and placement with the key van dimensions and ratings.
Download spec sheet ↓- Tare weight
- 2,750 kg
- ATM
- 3,500 kg
- Tow ball weight
- 320 kg
- Connection type
- Pintle hook
- Body length
- 5,500 mm
- Interior length
- 5,400 mm
- Travel length
- 7,280 mm
- Width
- 2,490 mm
- Total travel height
- 3,450 mm
- Interior height
- 2,300 mm
- Wind rating
- Region B · Terrain Category 3
Take a closer look
Explore the 5 Series.
Select any image to open the full-screen gallery and see the van in greater detail.
Mobile site van hire
Contact us for van hire.
Contact Big Red Rentals on 0414 192 246 about availability, delivery and a van hire package to fit your project requirements.
Request a quoteDownload specs
